| Чипсет | INTEL Z890 |
| Процессор | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Память | 4x DDR5 UDIMM, максимальный объем памяти 256GB Поддерживаемая память 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page |
| Встроенная графика | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Слот | 3x PCI-E x16 слоты (количество) 1x PCI-E x1 слоты (количество) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Звук | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Накопители | 4x M.2 (количество) Источник M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices Источник M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices Источник M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices Источник M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (количество) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Встроенный Thunderbolt | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| USB | 4x USB 2.0 (Тыловой) 4x USB 2.0 (Фронтальный) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Сеть | Intel® Killer™ E5000 5Gbps LAN |
| РАЗЪЕМЫ НА СИСТЕМНОЙ ПЛАТЕ | 1x Thunderbolt5 card connector (JTBT5, support RTD3) 1x коннектор питания(ATX_PWR) 2x коннектор питания(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x коннектор вентилятора процессора 1x Combo Fan (Pump_Sys Fan) 5x коннектор системного вентиляторв 2x коннектор фронтальной панели (JFP) 1x коннектор датчика открытия корпуса (JCI) 1x коннектор фронтального аудио (JAUD) 1x коннектор Tuning Controller (JDASH) 3x коннектор Addressable V2 RGB светодиодов (JARGB_V2) 1x коннектор RGB светодиодов(JRGB) 1x TPM коннектор(Support TPM 2.0) 4x USB 2.0 порты 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Сеть WIRELESS и BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| ФУНКЦИЯ ПОДСВЕТКИ | 4x EZ Debug LED |

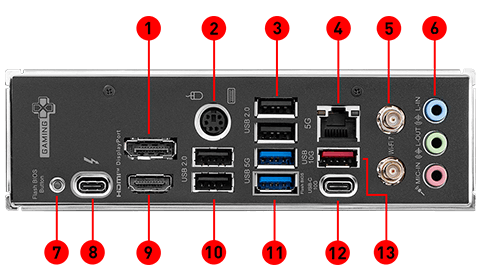

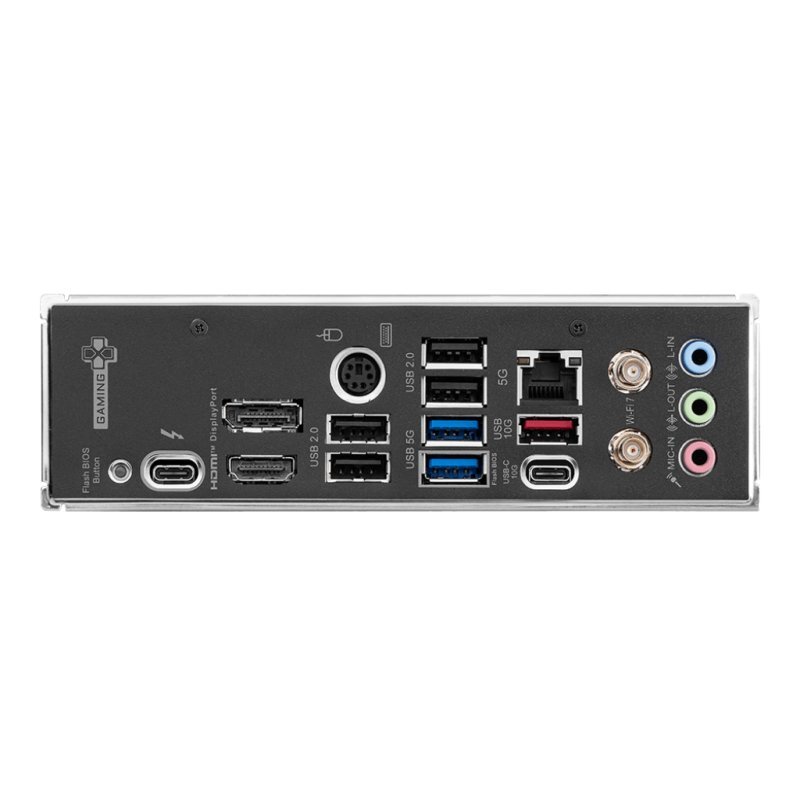

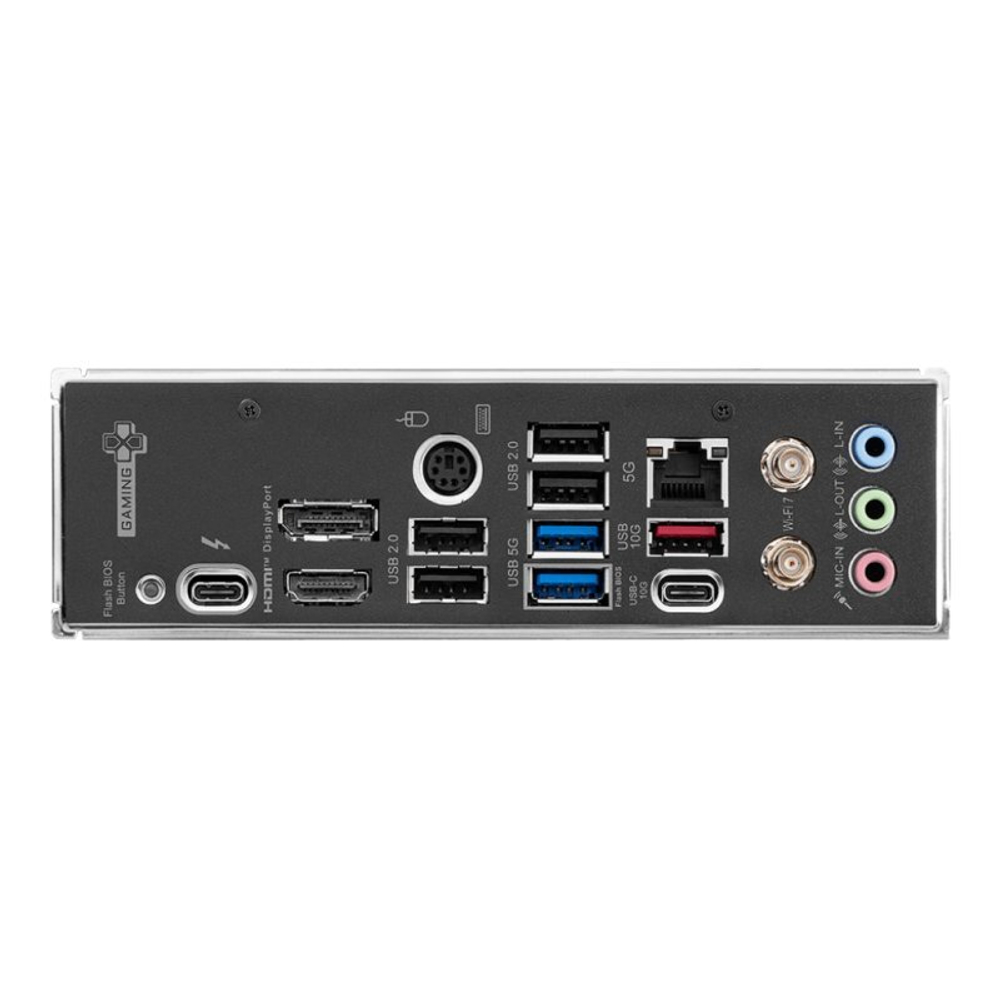

| РАЗЪЕМЫ НА ЗАДНЕЙ ПАНЕЛИ |
|
|
ОПЕРАЦИОННАЯ СИСТЕМА |
Support for Windows® 11 64-bit |
| Печатная плата | ATX 243.84mmx304.8mm |
|---|
Характеристики
Производитель
MSI
